Product Type: Line-Interactive UPS;

UPS Rating: 1,150 VA / 920 W;

Topology: Line-interactive, high-frequency;

Configuration: Tower / Free-standing;

Input Connection: IEC C14;

Input Nominal Voltage: 230 V AC, adjustable to 200/208/220/230/240 V;

Input Voltage Range: 160–294 V, adjustable to 150–294 V;

Input Frequency Range: 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low-sensitivity mode;

Nominal Frequency: 50/60 Hz;

Input Phase: Single-phase;

Output Voltage: 230 V AC, adjustable to 200/208/220/230/240 V;

Output Voltage Range: 230 V (+6% / -10%);

Output Frequency: 50/60 Hz ±0.1% (autosensing);

Output Phase: Single-phase;

Output Waveform: Pure sine wave;

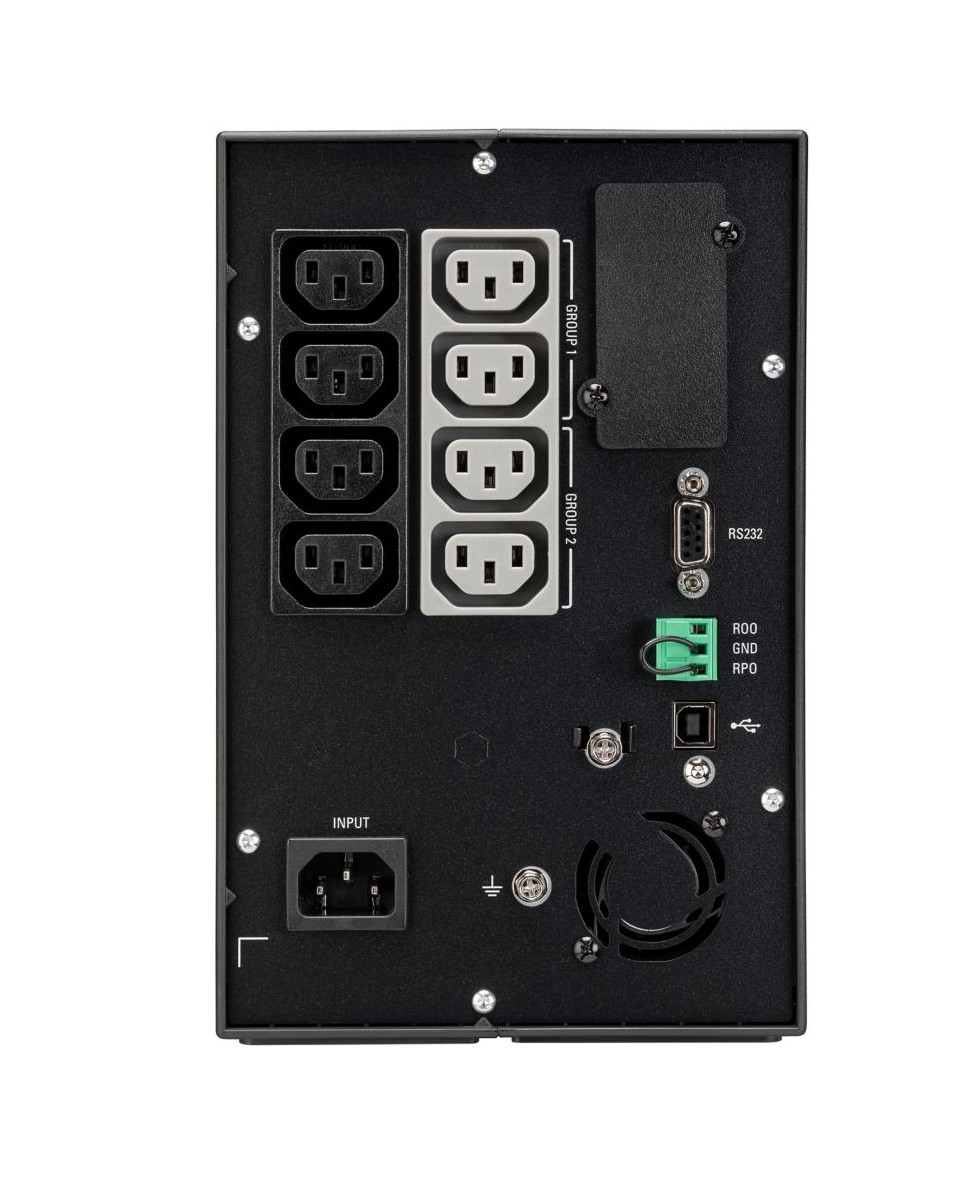

Number of Outputs: 8× IEC C13;

Manageable Outputs: 4× remotely manageable IEC C13 outlets;

Output Power Factor: 0.8;

Automatic Voltage Regulation: Yes, AVR with Booster & Fader;

Efficiency at Maximum Load: 98.2%;

Energy Metering: Yes;

Surge Protection: Yes;

Battery Type: Sealed lead-acid;

Battery Quantity: 2;

Battery Management: Eaton ABM+ technology, automatic battery test, deep-discharge protection, battery replacement warning and cold-start capability;

Battery Replacement: Hot-swappable, front-accessible;

Extended Battery Capability: Yes, via optional EBP;

Communication: 1× USB HID, 1× RS232 serial port, dry contacts and remote On/Off / Remote Power Off connectors;

Expansion Slot: 1× slot for optional communication card;

Ethernet Interface: No, optional network management card available;

User Interface: Multilingual graphical LCD display with blue backlight and LED status bar;

Auto Shutdown: Yes;

Software Compatibility: Eaton Brightlayer Software suite, VMware, Hyper-V, Citrix Xen, Red Hat and supported operating systems;

Noise Level: <35 dB at 1 m;

Operating Temperature: 0°C to 40°C;

Relative Humidity: 0–90%, non-condensing;

Maximum Altitude: 3,000 m;

Power Consumption: 17 W;

Color: Black/Silver;

Dimensions: 345 × 150 × 233 mm (D × W × H);

Weight: 11 kg;

Mounting: Free-standing; rack mounting kit not included;

Certifications: IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, UL 1778, CSA-C22.2, CE, UKCA, cTUVus, KCC, BIS, Cm, Ukr;

ompliance: LVD Directive, EMC Directive, RoHS Directive, WEEE Directive, Packaging Directive, Batteries Directive;

Package Contents: UPS, 2× IEC output power cords, USB cable, quick start guide, safety guide;

Special Features: Pure sine-wave output, AVR with Booster & Fader, energy metering, multilingual graphical LCD display, Eaton ABM+ battery management, hot-swappable batteries, 4 remotely manageable outlets, USB and RS232 communication, dry contacts, remote On/Off and Remote Power Off, optional communication card slot and compatibility with Eaton Brightlayer Software suite;

Warranty: 3 years on electronics, 2 years on batteries
