Product Type: Online UPS;

UPS Rating: 2,200 VA / 2,200 W;

Topology: Online / Double-conversion;

Configuration: Rack / Tower;

Rack Format: 19-inch, 2U;

Input Connection: IEC C20;

Input Nominal Voltage: 230 V AC, adjustable to 200/208/220/230/240 V;

Input Voltage Range: 176–276 V, 100–276 V with derating;

Input Frequency Range: 50/60 Hz;

Input Phase: Single-phase;

Input Power Factor: >0.99;

Output Voltage: 230 V AC, adjustable to 200/208/220/230/240 V;

Output Voltage Range: 200/208/220/230/240 V ±1%;

Output Frequency: 50/60 Hz;

Output Phase: Single-phase;

Output Waveform: Sine wave;

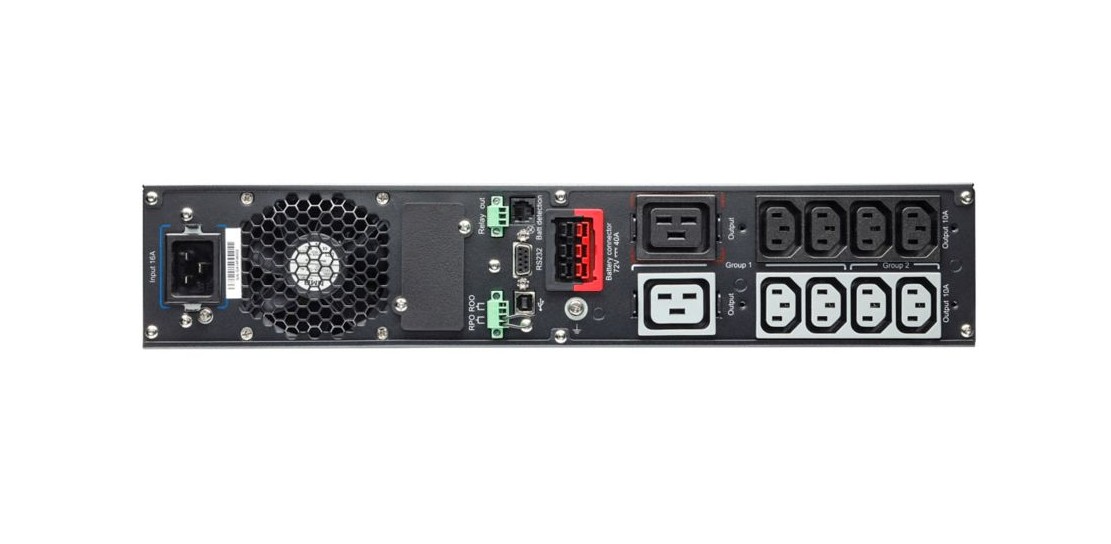

Number of Outputs: 8× IEC C13 + 2× IEC C19;

Manageable Outputs: Yes, remotely manageable outlet groups;

Output Power Factor: 1.0;

Output Voltage Distortion: ≤3% with linear load;

Automatic Voltage Regulation: Yes, through online double-conversion topology;

Efficiency at Maximum Load: 93%;

Efficiency in ECO Mode: 98%;

Internal Bypass: Yes;

Battery Type: Sealed lead-acid;

Battery Quantity: 6;

Battery Rating: 12 V / 7 Ah;

Battery Management: Eaton ABM technology, temperature-compensated charging, automatic battery test, deep-discharge protection and automatic recognition of external battery units;

Battery Replacement: Hot-swappable;

Extended Battery Capability: Yes;

Maximum Number of EBM: 4;

Communication: USB, RS232, relay contacts and remote On/Off / Remote Power Off;

Expansion Slot: 1× communication slot for optional network management card;

Ethernet Interface: No, optional network management card available;

User Interface: Next-generation graphical LCD display;

Auto Shutdown: Yes;

Software Compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector and virtual environments including VMware, Hyper-V, Citrix Xen and Red Hat;

Energy Metering: Yes, including managed outlet groups;

Noise Level: Not specified on the Eaton product page;

Operating Temperature: 0°C to 40°C;

Relative Humidity: 0–95%, non-condensing;

Maximum Altitude: 3,000 m;

Power Consumption: 143 W;

Color: Black/Silver;

Dimensions: 605 × 440 × 86.5 mm (D × W × H);

Weight: 28 kg;

Mounting: 19-inch rack-mount / tower installation; rack mounting kit included;

Certifications: IEC/EN 62040-1, IEC/EN 62040-2, UL 1778, CE, EAC, cULus, ENERGY STAR;

Compliance: CSA 22.2, FCC Part 15 Class B, CISPR22 Class B;

Package Contents: UPS, input cable, 2× IEC-IEC output cables, USB cable, serial cable, rack-mounting kit, tower supports, cable locking system, quickstart guide and safety instructions;

Special Features: Unity power factor (VA=W), online double-conversion topology, 93% efficiency at maximum load, 98% ECO-mode efficiency, graphical LCD display, energy metering, hot-swappable batteries, Eaton ABM technology, internal bypass, 8× IEC C13 and 2× IEC C19 outputs, optional network management card and support for up to 4 extended battery modules;

Warranty: 3 years on electronics, 2 years on battery
