Opis proizvoda
Product Type: Line-Interactive UPS;
UPS Rating: 700 VA / 360 W;
Topology: Line-interactive;
Configuration: Tower / Free-standing;
Input Connection: Protective contact (SCHUKO);
Input Nominal Voltage: 230 V AC, adjustable to 220/230/240 V;
Input Voltage Range: 140–300 V;
Input Frequency Range: 45–63 Hz;
Nominal Frequency: 50/60 Hz;
Input Phase: Single-phase;
Input Cord Length: 1.2 m;
Output Voltage: 230 V AC;
Output Voltage Range: 195–257 V;
Output Frequency: 50/60 Hz;
Output Phase: Single-phase;

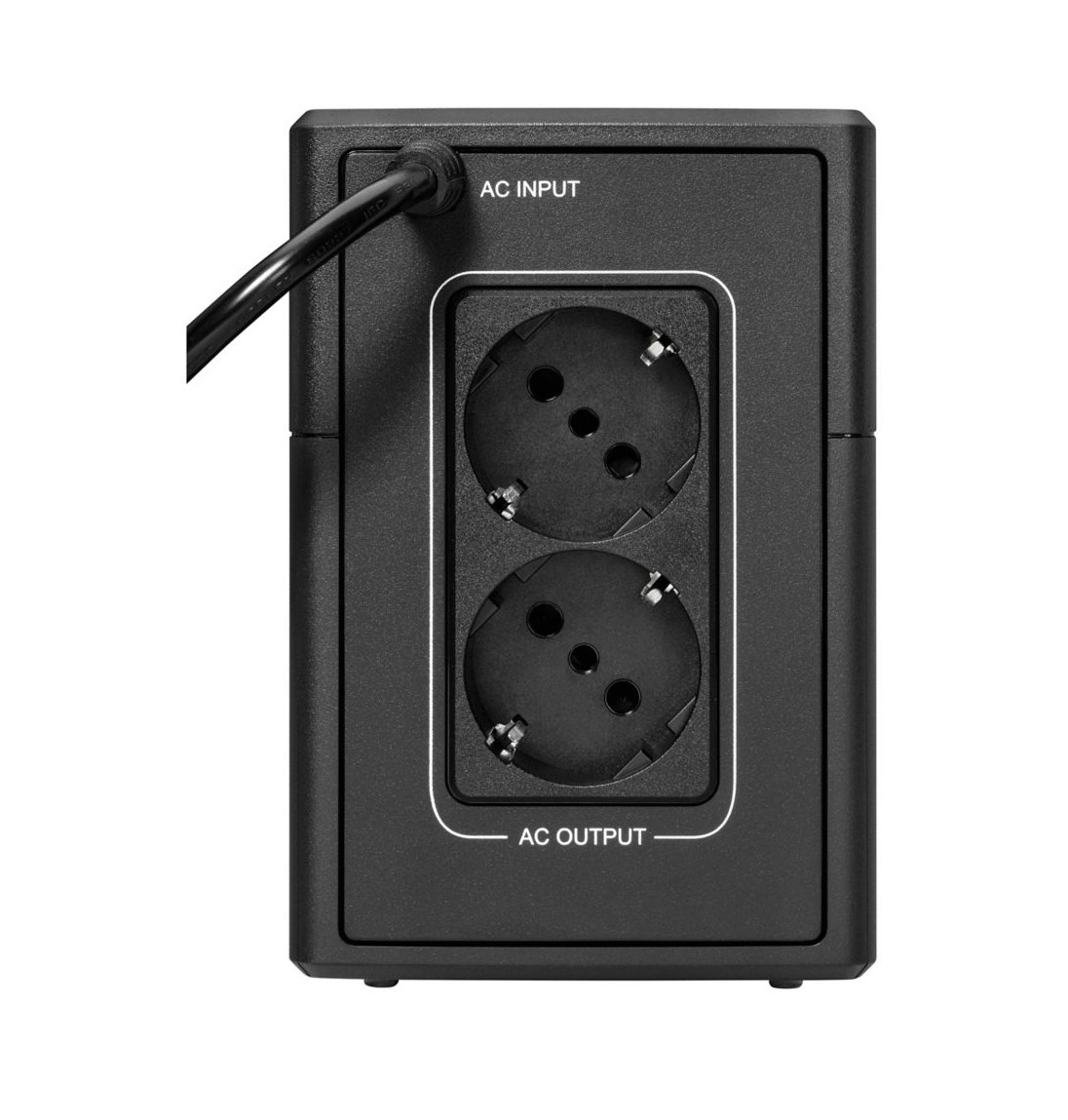

Number of Outputs: 2× Schuko;
Output Power Factor: 0.51;
Automatic Voltage Regulation: Yes, AVR;
Efficiency at Maximum Load: 95%;
Surge Protection: Yes;
Battery Type: Sealed lead-acid;
Battery Quantity: 1;
Battery Rating: 12 V / 7 Ah;
Battery Management: Automatic battery test, deep-discharge protection and cold-start capability;
Battery Replacement: Replaceable battery;
Extended Battery Capability: No;
Communication: None;
Expansion Slot: None;
Ethernet Interface: No;
User Interface: LED indicators;
Auto Shutdown: No;
Internal Bypass: No;
Hot-Swap Power: No;
Software Compatibility: Not applicable;
Operating Temperature: 0°C to 40°C;
Relative Humidity: 0–90%, non-condensing;
Color: Black;
Dimensions: 288 × 100 × 148 mm (D × W × H);
Weight: 4.29 kg;
Mounting: Free-standing; rack mounting kit not included;
Certifications: IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, CE, EAC, UKCA;
Compliance: CB, LVD Directive, EMC Directive, RoHS Directive, Packaging Directive, WEEE Directive, Batteries Directive;
Package Contents: Quick start guide, safety instructions;
Special Features: Automatic Voltage Regulation (AVR), compact tower design, surge protection, automatic battery test, deep-discharge protection, cold-start capability and two Schuko (DIN) outlets;
Warranty: 2 years
Detalji proizvoda
- Kataloški broj
- 5E700D
- Barkod
- Jamstvo
- 24 months warranty
- Brand
- EATON
