Product Type: Online UPS;

UPS Rating: 6,000 VA / 6,000 W;

Topology: Online / Double-conversion with Power Factor Correction (PFC);

Configuration: Rack / Tower;

Rack Format: 19-inch, 3U;

Input Connection: Hardwired / fixed connection;

Input Nominal Voltage: 230 V AC, adjustable to 200/208/220/230/240 V;

Input Voltage Range: 176–276 V without derating, 100–276 V with derating;

Input Frequency Range: 40–70 Hz;

Nominal Frequency: 50/60 Hz, automatic selection;

Input Phase: Single-phase;

Input Power Factor: >0.99;

Output Voltage: 230 V AC, adjustable to 200/208/220/230/240 V;

Output Voltage Range: 200/208/220/230/240 V ±1%;

Output Frequency: 50/60 Hz;

Output Phase: Single-phase;

Output Waveform: Sine wave;

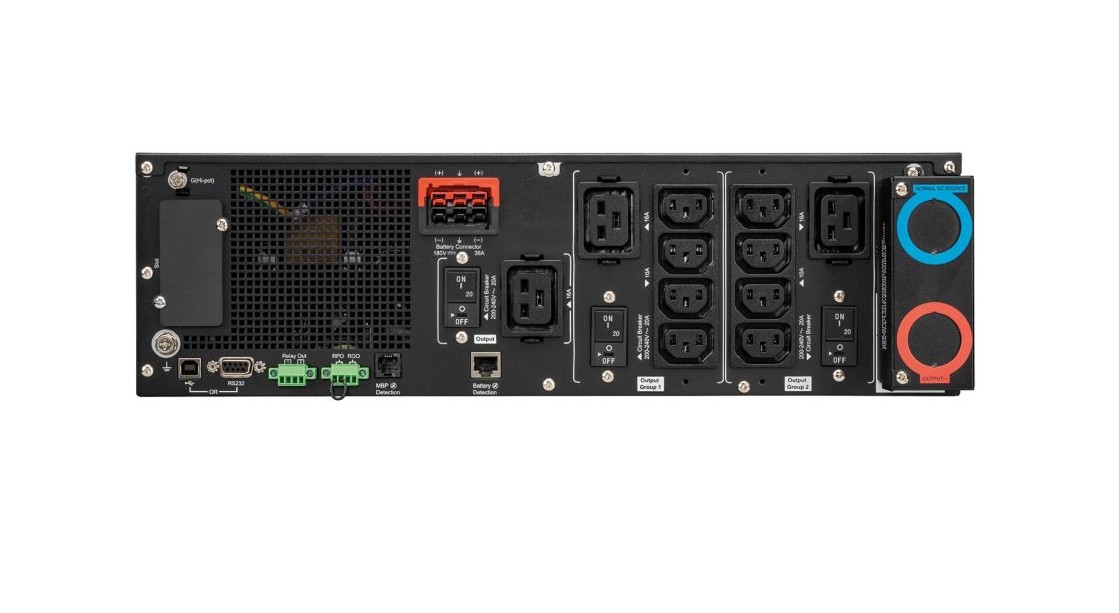

Number of Outputs: 8× IEC C13 + 3× IEC C19 + 1× hardwired output;

Output Power Factor: 1.0;

Output Voltage Distortion: ≤1% with linear load;

Automatic Voltage Regulation: Yes, through online double-conversion topology;

Efficiency at Maximum Load: 96.5%;

Efficiency in ECO Mode: 98.9%;

Internal Bypass: Yes, automatic;

Battery Type: Sealed lead-acid;

Battery Quantity: 15;

Battery Rating: 12 V / 5 Ah;

Battery Management: Eaton ABM+ predictive battery life technology, temperature-compensated charging, automatic battery test, deep-discharge protection and automatic recognition of external battery units;

Battery Replacement: Hot-swappable internal batteries and extended battery modules;

Extended Battery Capability: Yes, up to 12 external battery modules (EBM);

Runtime at Full Load: Approximately 2.6 min;

Runtime at Half Load: Approximately 7.1 min;

Communication: 1× USB HID-compliant port, 1× RS232 serial port, Remote On/Off, Remote Power Off and 2× dry-contact outputs;

Expansion Slot: 1× slot for optional communication card;

Ethernet Interface: No, optional network management card available;

Potential-Free Contacts: Yes;

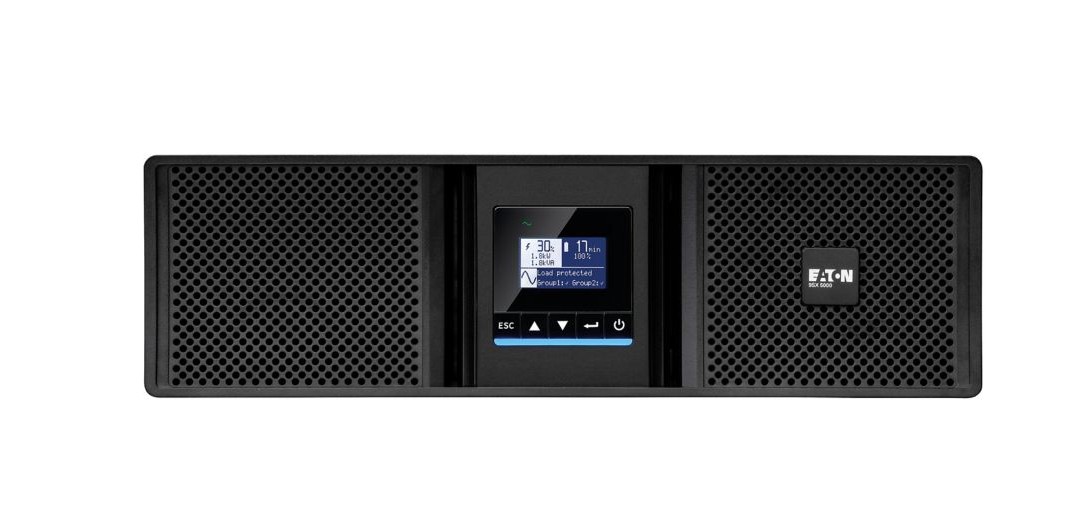

User Interface: Multilingual graphical LCD display;

Auto Shutdown: Yes;

Software Compatibility: Eaton Brightlayer Software suite;

Noise Level: <40 dB at 1 m;

Operating Temperature: 0°C to 40°C;

Relative Humidity: 0–95%, non-condensing;

Maximum Altitude: 3,000 m;

Power Consumption: 210 W;

Color: Black;

Dimensions: 684 × 440 × 130 mm (D × W × H);

Weight: 43.1 kg;

Mounting: 19-inch rack-mount, 3U, or tower installation; rack-mounting kit included;

Certifications: IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ENERGY STAR, CE, cULus, UKCA, Cm, Ukr, RCM, KCC, BSMI;

Compliance: LVD Directive, EMC Directive, RoHS Directive, REACH, WEEE Directive, Packaging Directive and Batteries Directive;

Package Contents: UPS, 2× cable glands, 2× IEC-IEC output cables (1.2 m), USB cable (1.8 m), cable locking systems, tower mounting supports, rack-mounting kit with brackets and slides, quickstart guide and safety instructions;

Special Features: 6,000 VA / 6,000 W unity-power-factor design, online double-conversion topology with PFC, 96.5% efficiency at maximum load, 98.9% ECO-mode efficiency, automatic internal bypass, Eaton ABM+ battery management, hot-swappable batteries, graphical LCD display, 8× IEC C13 + 3× IEC C19 + hardwired output, support for up to 12 external battery modules, USB and RS232 communication, Remote On/Off and Remote Power Off, dry contacts and optional communication card slot;

Warranty: 2 years
