Name: Eaton 5P 1550i G2
SKU: 5P1550IG2

Opis proizvoda

Special features	Automatic Voltage Regulation (AVR) Energy efficient, reduce energy and cooling costs Delivers clean sinewave output 1 slot for optional com card (Network management card, Relay card or Network and Industrial card) Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat) Fully integrates with Eaton Brightlayer Software suite 1 USB port + 1 serial port Advanced Battery Management (ABM+) technology to increase battery lifetime and improve life time prediction accuracy Next-generation graphical LCD display Hot swappable batteries Remote reboot and runtime optimization thanks to 2 manageable outlet groups Remote ON/OFF and remote Power OFF connectors
Topology	Line-interactive
Construction type	Free standing model
Color	Black/silver
Enclosure	Black/silver
VA rating	1550 VA
Wattage	1350 W
Rack mounting kit	No
Package contents	USB cable (2) IEC-IEC cables Quickstart guide Safety instructions
Auto shutdown function	Yes
Primary frequency - max	70 Hz
Primary frequency - min	47 Hz
Input connection	C14
Input nominal voltage	230V default (200/208/220/230/240V)
Nominal frequency	50-60 Hz
Input frequency range	47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
Receptacle	(8) C13
Number of Outputs C13	8
Output waveform	Sine wave
Voltage	230V
Output nominal voltage	230V default (200/208/220/230/240V)
Feed type	1
Voltage type	AC
Runtime graph	View runtime graph
Battery management	ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
Battery replacement	User replaceable
Battery rating	12 V / 9 Ah
Battery type	Lead-acid maintenance-free (replaceable)
Extended battery capability	No
Runtime at half load	11.5 min

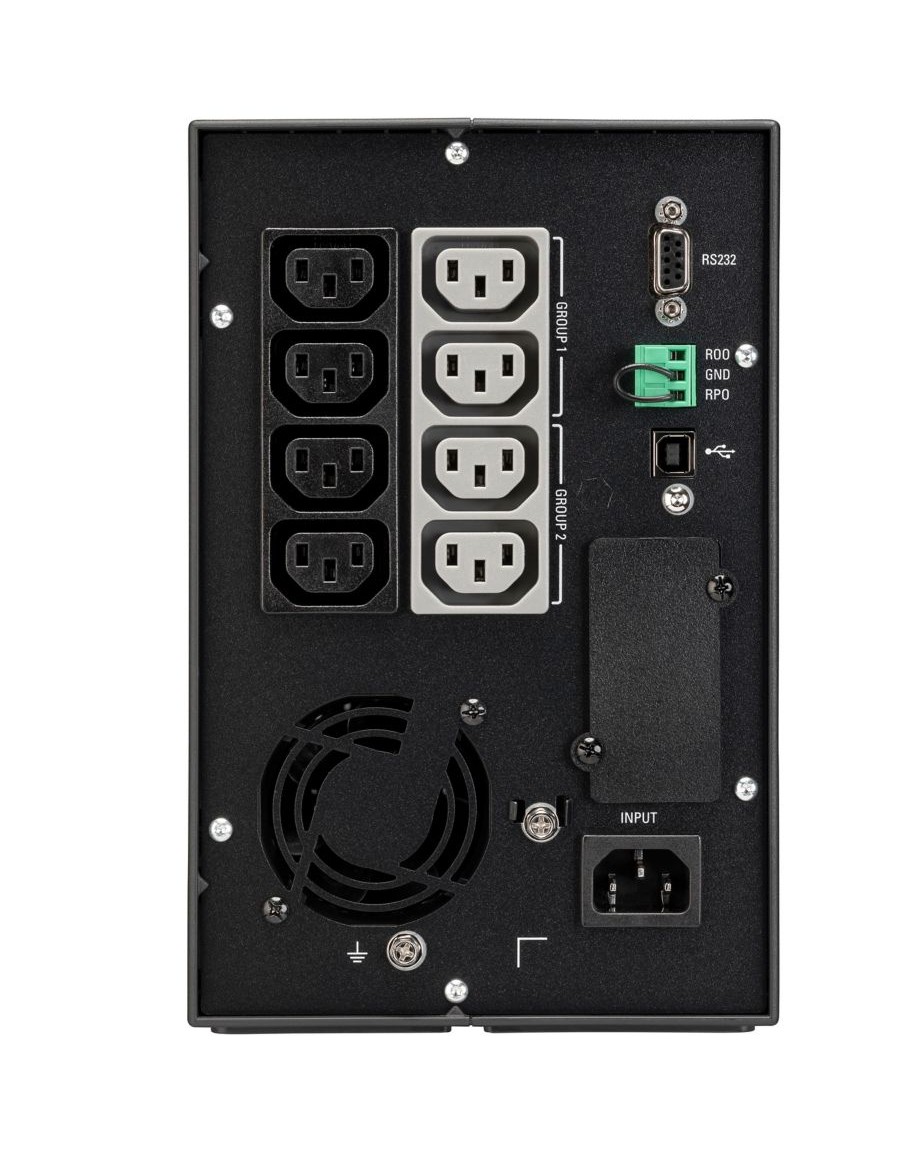

Communication	USB port (HID compliant) Serial port (RS232) Mini-terminal block for remote On/Off and Remote Power Off Dry contacts (2 outputs, optocoupler, RJ)
Expansion slots	One slot for optional communication card
Ethernet interface	No
Includes network card	No
Software compatibility	Eaton Brightlayer Software suite

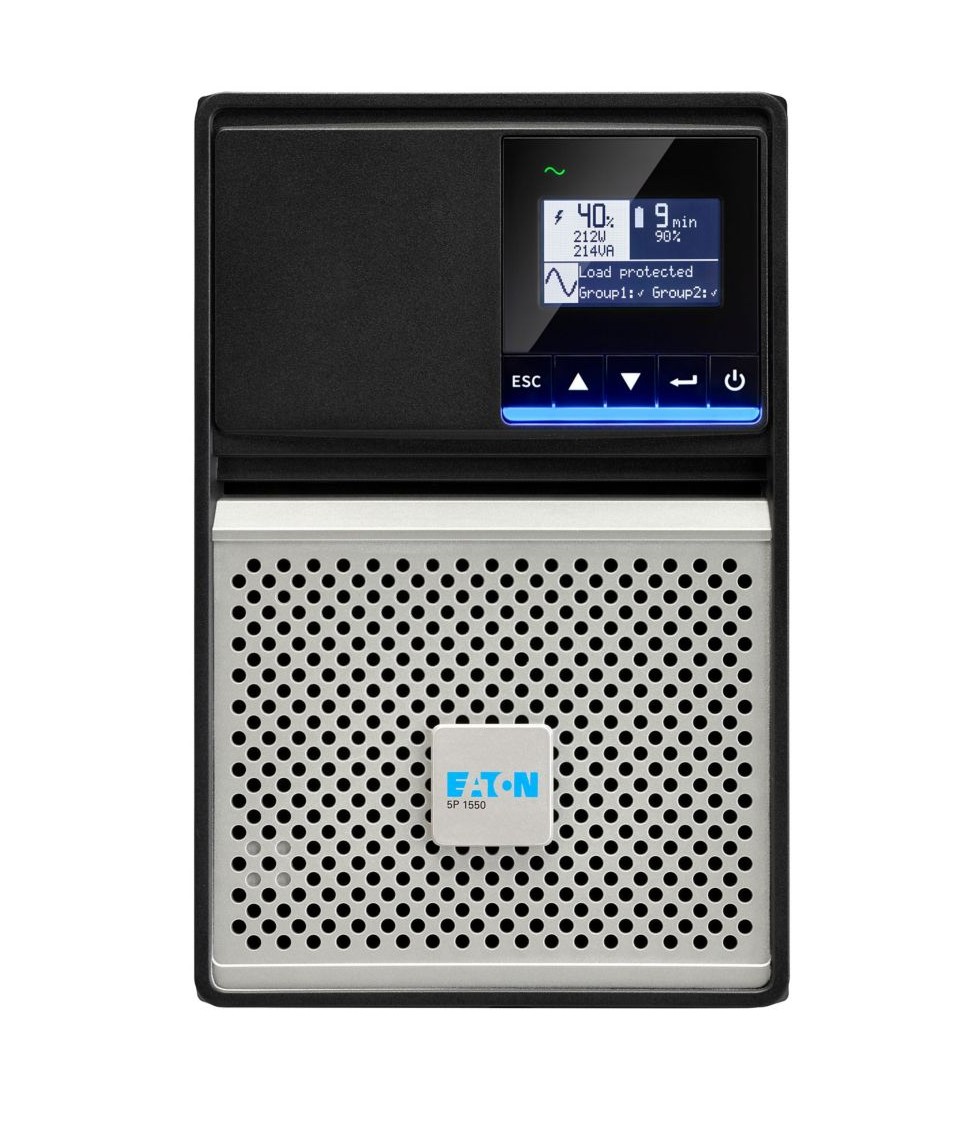

User interface	Multilingual graphical LCD display
Type of interface	LCD Display with blue backlight
Potential free switch contact	Yes
Altitude	3000 m
BTU Rating	Online: 92, Battery: 654 BTU/hr
Noise level	<35 dB at 1 meter
Relative humidity	0-90% non-condensing
Temperature range	0° to 40°C (32° to 104°F)
Input voltage - max	294 V
Input voltage - min	150 V
Output voltage - max	240 V
Output voltage - min	200 V
Secondary frequency - max	60 Hz
Secondary frequency - min	50 Hz
Battery quantity	3
Efficiency at max. load	98.2
Input voltage range	160-294 V (adjustable to 150 V-294 V)
Output frequency	50/60 Hz
Output power factor	0.9
Output voltage range	230 V (+6%/-10%)
Phase (input)	1
Phase (output)	1
Runtime at full load	2
Communication interface	RS232 USB
Power consumption	24 W
USB interface	Yes
With communication interface RS-232	Yes

Detalji proizvoda

Kataloški broj: 5P1550IG2
Jamstvo: 36 months warranty
