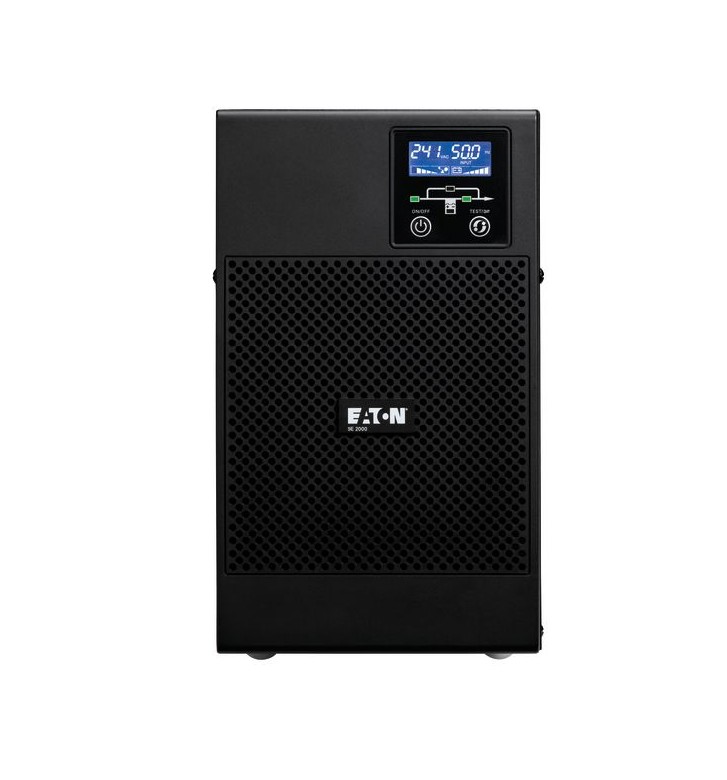

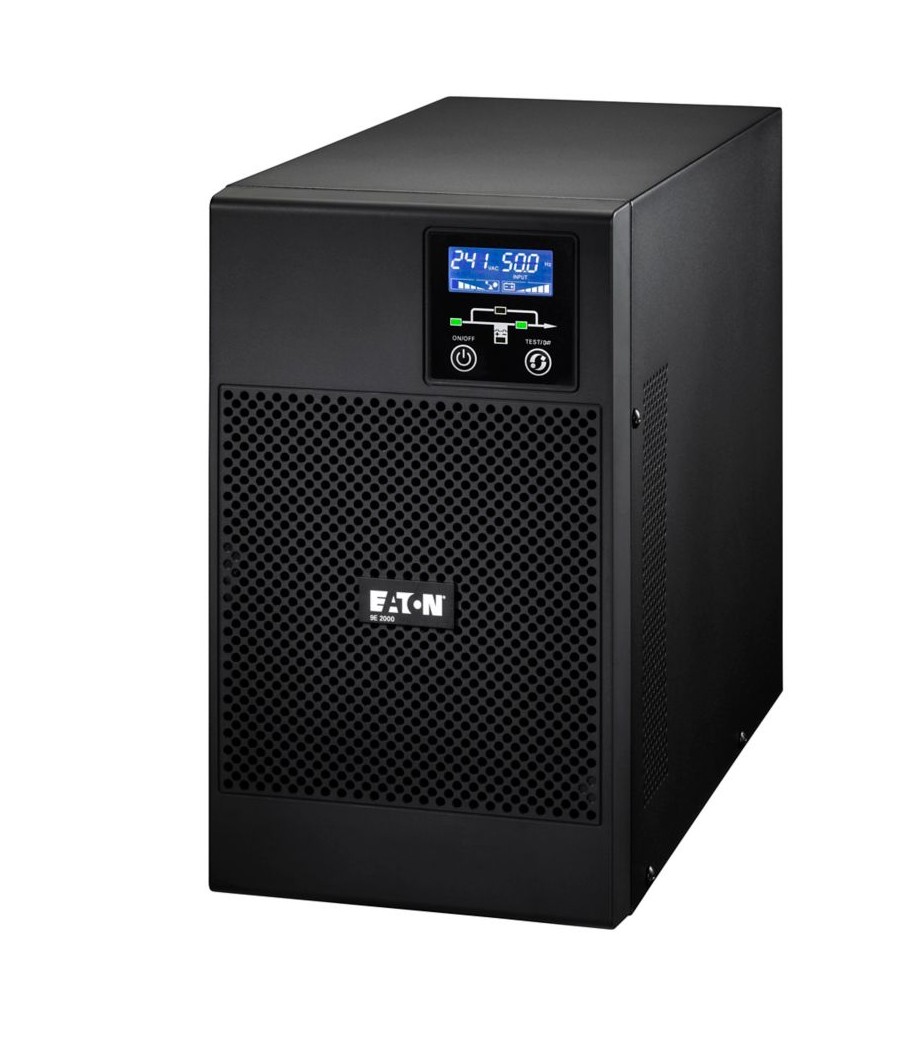

Product Type: Online UPS;

UPS Rating: 2,000 VA / 1,600 W;

Topology: Online / Double-conversion;

Configuration: Tower / Free-standing;

Input Connection: IEC C14;

Input Nominal Voltage: 230 V AC, adjustable to 220/230/240 V;

Input Voltage Range: 176–300 V, with 100–300 V available with derating;

Input Frequency Range: 40–70 Hz;

Nominal Frequency: 50/60 Hz;

Input Phase: Single-phase;

Input Power Factor: >0.99;

Output Voltage: 230 V AC, adjustable to 220/230/240 V;

Output Voltage Range: 220/230/240 V ±2%;

Output Frequency: 50/60 Hz;

Output Phase: Single-phase;

Output Waveform: Sine wave;

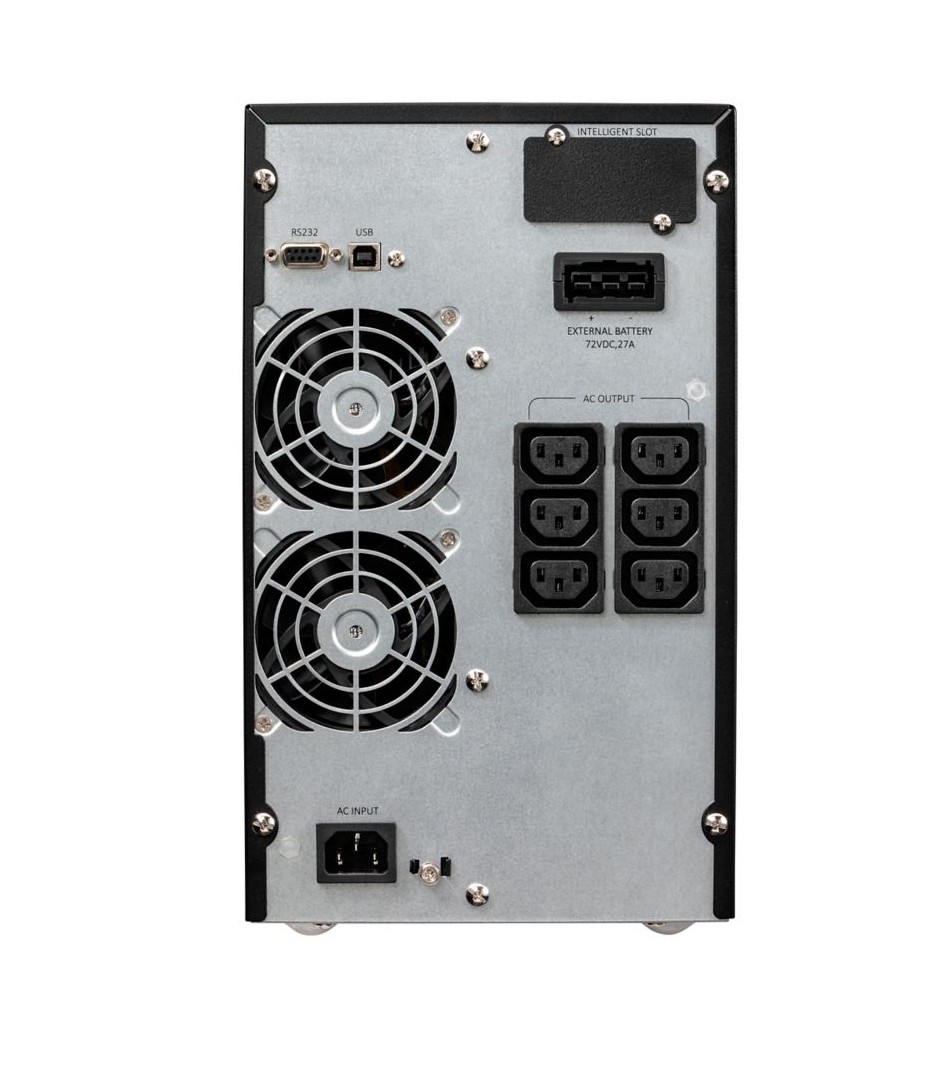

Number of Outputs: 6× IEC C13;

Output Power Factor: 0.8;

Output Voltage Distortion: ≤3% with linear load;

Automatic Voltage Regulation: Yes, through double-conversion topology;

Efficiency at Maximum Load: 91%;

Efficiency in ECO Mode: 97.5%;

Internal Bypass: Yes;

Battery Type: Sealed lead-acid;

Battery Quantity: 6;

Battery Rating: 12 V / 7 Ah;

Battery Management: Automatic battery test and deep-discharge protection;

Battery Replacement: Replaceable batteries;

Extended Battery Capability: Yes;

Maximum Number of EBM: 4;

Communication: 1× USB HID-compliant port, 1× RS232 serial port and 1× communication slot;

Expansion Slot: 1× slot for optional communication card;

Ethernet Interface: No;

User Interface: LCD display;

Auto Shutdown: Yes;

Hot-Swap Power: No;

Software Compatibility: Eaton Intelligent Power Manager and Eaton Intelligent Power Protector;

Runtime at Full Load: Approximately 7 min;

Runtime at Half Load: Approximately 16 min;

Noise Level: <37 dB at 1 m;

Operating Temperature: 0°C to 40°C;

Relative Humidity: 0–95%, non-condensing;

Maximum Altitude: 3,000 m;

Power Consumption: 158.2 W;

Color: Black;

Dimensions: 399 × 190 × 330 mm (D × W × H);

Weight: 15.8 kg;

Mounting: Free-standing; rack mounting kit not included;

Certifications: IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC;

Compliance: CE Marked, TÜV;

Package Contents: UPS, USB cable, serial cable, quick start guide, safety instructions;

Special Features: Online double-conversion topology, continuous voltage and frequency regulation, internal bypass for service continuity, LCD display, pure sine-wave output, >0.99 input power factor, ECO mode, replaceable batteries, optional communication card and support for up to 4 extended battery modules;

Warranty: 2 years
