Product Type: Online UPS;

UPS Rating: 1,000 VA / 900 W;

Topology: Online / Double-conversion;

Configuration: Rack;

Rack Format: 19-inch, 2U;

Input Connection: IEC C14;

Input Nominal Voltage: 230 V AC, adjustable to 220/230/240 V;

Input Voltage Range: 190–276 V at 100% load, 120–276 V at up to 25% load;

Input Frequency Range: 40–70 Hz;

Nominal Frequency: 50/60 Hz;

Input Phase: Single-phase;

Input Power Factor: >0.99;

Output Voltage: 230 V AC, adjustable to 200/208/220/230/240 V;

Output Voltage Range: 220/230/240 V ±2%;

Output Frequency: 50/60 Hz, automatic selection or frequency-converter mode;

Output Phase: Single-phase;

Output Waveform: Sine wave;

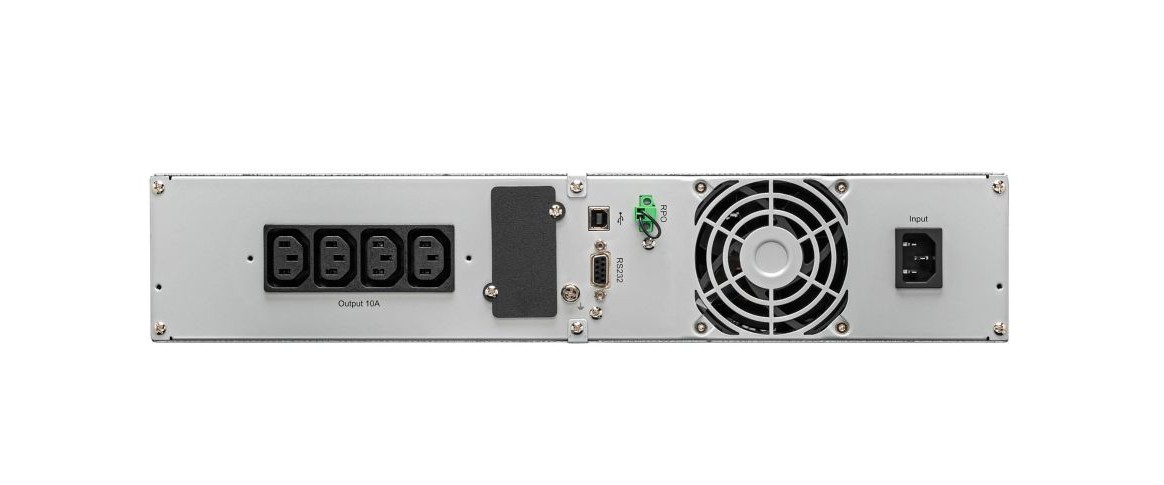

Number of Outputs: 4× IEC C13, 10 A;

Output Power Factor: 0.9;

Output Voltage Distortion: ≤3% with linear load;

Automatic Voltage Regulation: Yes, through online double-conversion topology;

Efficiency at Maximum Load: 90%;

Efficiency in ECO Mode: 95.5%;

Internal Bypass: Yes, automatic;

Battery Type: Sealed lead-acid;

Battery Quantity: 3;

Battery Rating: 12 V / 7 Ah;

Battery Management: Temperature-compensated charging, automatic battery test and deep-discharge protection;

Battery Replacement: Replaceable batteries;

Extended Battery Capability: No;

Runtime at Full Load: Approximately 6 min;

Runtime at Half Load: Approximately 15 min;

Communication: 1× USB HID-compliant port, 1× RS232 serial port, 1× mini-terminal block for Remote Power Off;

Expansion Slot: 1× slot for optional communication card;

Ethernet Interface: No, optional network management card available;

Potential-Free Contact: Yes;

User Interface: Multilingual LCD display;

Auto Shutdown: Yes;

Software Compatibility: Eaton Intelligent Power Manager and Eaton Intelligent Power Protector;

Noise Level: <41 dB at 1 m;

Operating Temperature: 0°C to 40°C;

Relative Humidity: 0–96%, non-condensing;

Maximum Altitude: 3,000 m;

Power Consumption: 110 W;

Color: Black;

Dimensions: 438 × 86.5 × 438 mm (W × H × D);

Weight: 17.6 kg;

Mounting: 19-inch rack-mount, 2U; rack mounting kit included;

Certifications: IEC/EN 62040-1, IEC/EN 62040-2, CE;

Compliance: CE Marked, TUV;

Package Contents: UPS, 2× IEC-IEC output cables, USB cable, rack-mounting kit, safety instructions and quickstart guide;

Special Features: Online double-conversion topology with automatic bypass and power factor correction, 0.9 output power factor, >0.99 input power factor, multilingual LCD display, ECO mode, automatic battery testing, deep-discharge protection, replaceable batteries, USB and RS232 communication, Remote Power Off, optional communication card slot and frequency-converter capability;

Warranty: 2 years
