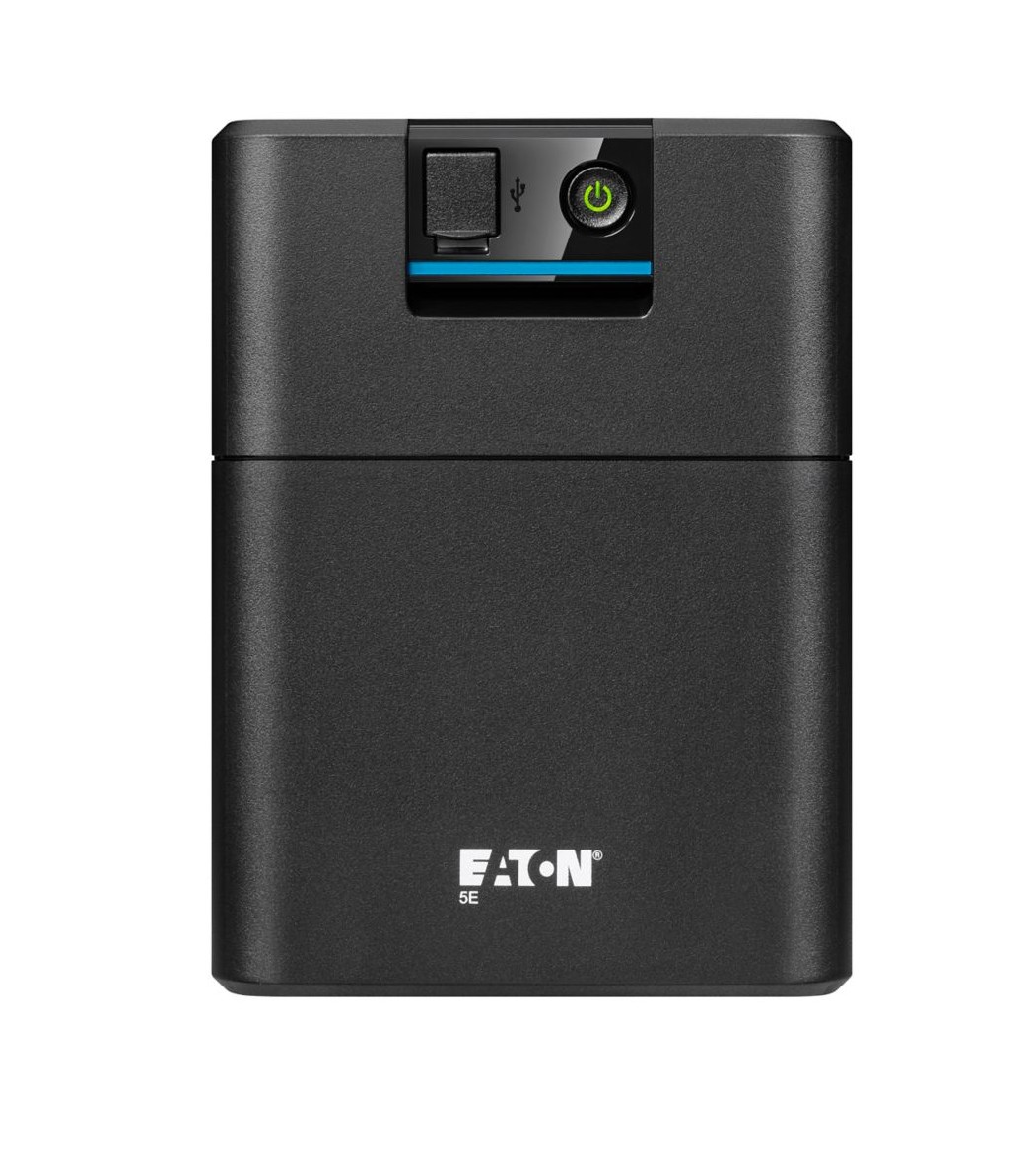

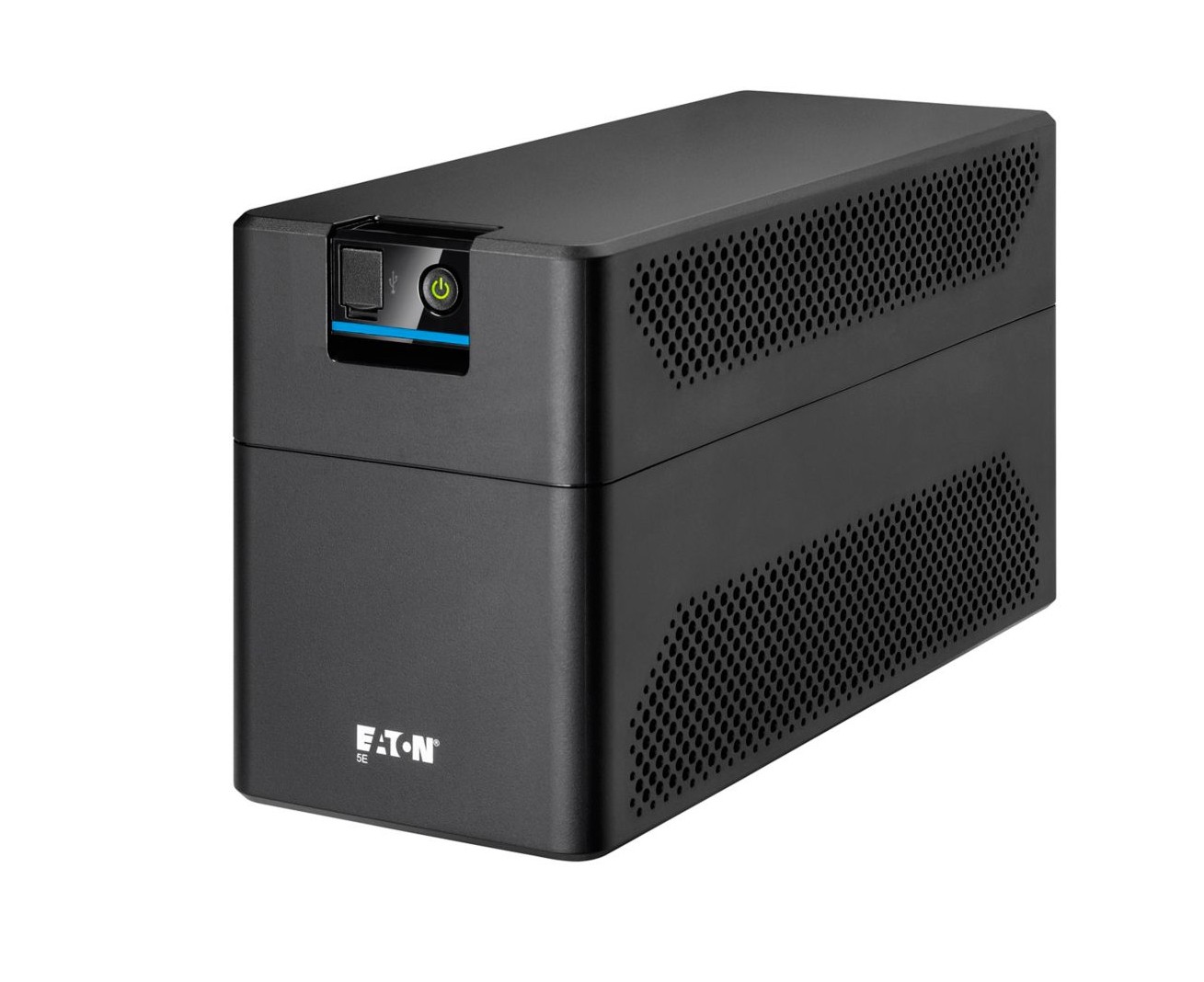

Name: Eaton 5E 1600 USB DIN G2
SKU: 5E1600UD

Opis proizvoda

Special features	Automatic Voltage Regulation (AVR) Saves space with a compact tower design HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux) Includes four Schuko (DIN) Outlets
Topology	Line-interactive
Construction type	Free standing model
Color	Black
VA rating	1600 VA
Wattage	900 W
Rack mounting kit	No
Package contents	Quick start Safety instructions
Surge protection	Yes
Internal bypass	No
Hot swap power	No
Auto shutdown function	Yes
Primary frequency - max	63 Hz
Primary frequency - min	45 Hz
Input connection	Protective contact (SCHUKO)
Input cord length	1.2 m
Input nominal voltage	230V default (220/230/240V)
Nominal frequency	50/60 Hz
Input frequency range	45-63 Hz

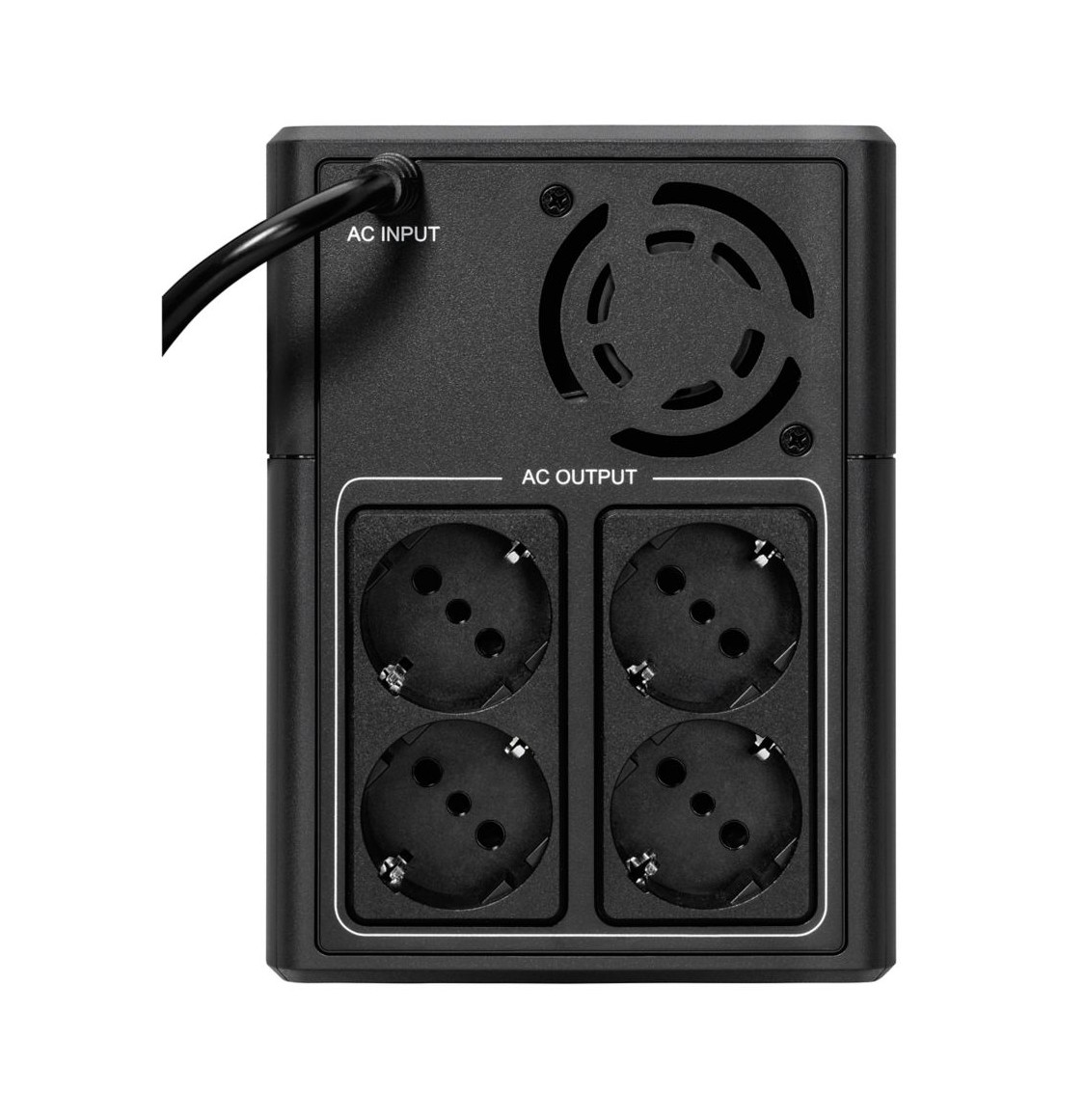

Receptacle	(4) Schuko
Num of Outputs PC (SCHUKO)	4
Voltage	230V
Output nominal voltage	230V
Feed type	1
Voltage type	AC
Runtime graph	View runtime graph
Battery management	Automatic battery test, deep-discharge protection, cold-start capable
Battery rating	12 V / 7 Ah
Battery type	Sealed, lead-acid
Extended battery capability	No
Communication	USB port (HID compliant)
Expansion slots	No
Ethernet interface	No
Includes network card	No
Software compatibility	Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
User interface	LEDs
Type of interface	USB
Potential free switch contact	No
Relative humidity	0-90% non-condensing
Temperature range	0° to 40°C (32° to 104°F)
Operating temperature - max	40 °C
Operating temperature - min	0 °C
Output apparent power	1600 VA
Input voltage - max	300 V
Input voltage - min	140 V
Output voltage - max	257 V
Output voltage - min	195 V
Secondary frequency - max	60 Hz
Secondary frequency - min	50 Hz
Battery quantity	2
Efficiency at max. load	95
Input voltage range	140-300 V
Output frequency	50/60 Hz
Output voltage range	195-257 V
Phase (input)	1
Phase (output)	1

Detalji proizvoda

Kataloški broj: 5E1600UD
Barkod: 3553340704345
Jamstvo: 24 months warranty
