Product Type: Line-Interactive UPS;

UPS Rating: 1,200 VA / 660 W;

Topology: Line-interactive;

Configuration: Tower / Free-standing;

Input Connection: IEC C14;

Input Nominal Voltage: 230 V AC, adjustable to 220/230/240 V;

Input Voltage Range: 140–300 V;

Input Frequency Range: 45–63 Hz;

Nominal Frequency: 50/60 Hz;

Output Voltage: 230 V AC;

Output Voltage Range: 195–257 V;

Output Frequency: 50/60 Hz;

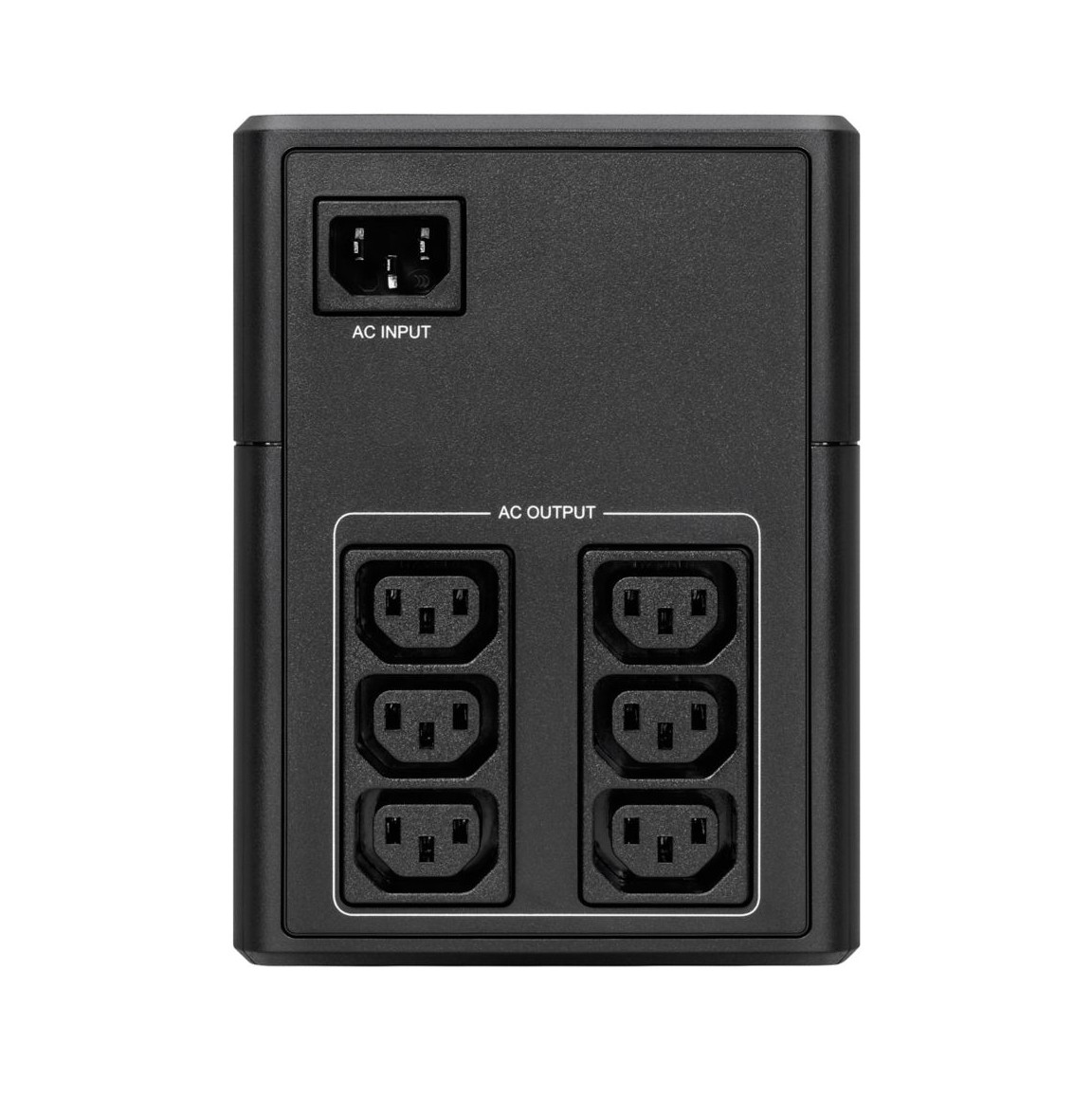

Number of Outputs: 6× IEC C13;

Output Power Factor: 0.55;

Automatic Voltage Regulation: Yes, AVR;

Efficiency at Maximum Load: 95%;

Surge Protection: Yes;

Battery Type: Sealed lead-acid;

Battery Quantity: 2;

Battery Rating: 12 V / 7 Ah;

Battery Management: Automatic battery test, deep-discharge protection and cold-start capability;

Battery Replacement: Replaceable battery;

Extended Battery Capability: No;



Communication: 1× USB HID-compliant port;

Expansion Slot: None;

Ethernet Interface: No;

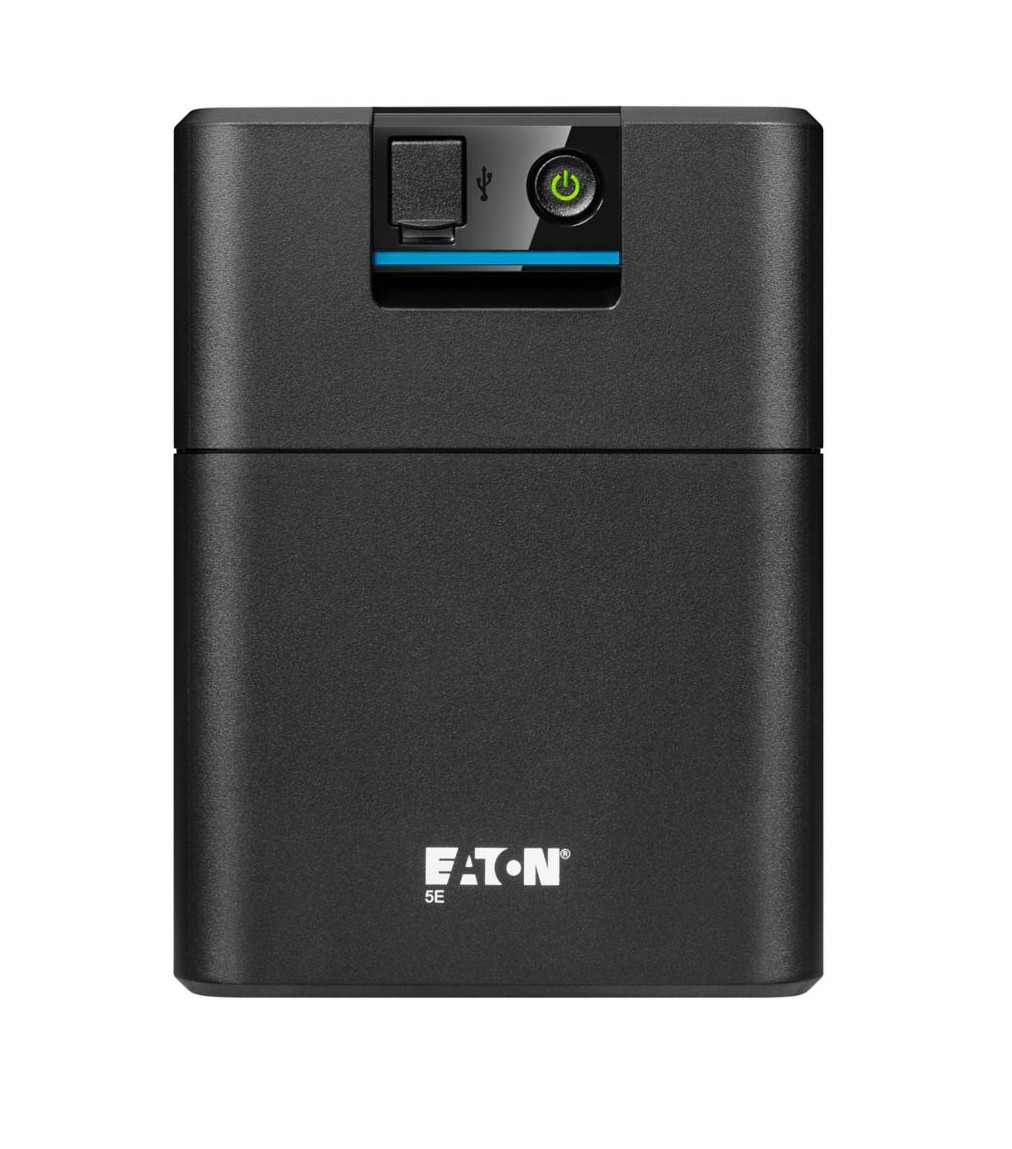

User Interface: LED indicators;

Auto Shutdown: Yes;

Software Compatibility: Eaton UPS Companion;

Power Consumption: 34.7 W;

Operating Temperature: 0°C to 40°C;

Relative Humidity: 0–90%, non-condensing;

Color: Black;

Dimensions: 330 × 180 × 133 mm (D × H × W);

Weight: 8.13 kg;

Certifications: IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, CE, EAC, UKCA;

Compliance: CB, LVD Directive, EMC Directive, RoHS Directive, Packaging Directive, WEEE Directive, Batteries Directive;

Package Contents: 2× IEC-IEC output cables, quick start guide, safety instructions;

Warranty: 2 years;

Special Features: Automatic Voltage Regulation (AVR), compact tower design, HID-compliant USB port for automatic integration with Windows, macOS and Linux, six IEC C13 outputs and compatibility with Eaton UPS Companion software;

Warranty: 2 years
