Product Type: Online UPS;

UPS Rating: 3,000 VA / 2,700 W;

Topology: Online / Double-conversion;

Configuration: Rack;

Rack Format: 19-inch, 2U;

Input Connection: IEC C20;

Input Cord Length: 1.8 m;

Input Nominal Voltage: 230 V AC, adjustable to 200/208/220/230/240/250 V;

Input Voltage Range: 200–276 V without derating, 140–276 V with derating;

Input Frequency Range: 40–70 Hz;

Nominal Frequency: 50/60 Hz;

Input Phase: Single-phase;

Input Power Factor: >0.99;

Output Voltage: 230 V AC, adjustable to 200/208/220/230/240 V;

Output Voltage Range: 200/208/220/230/240 V ±2%;

Output Frequency: 50/60 Hz;

Output Phase: Single-phase;

Output Waveform: Sine wave;

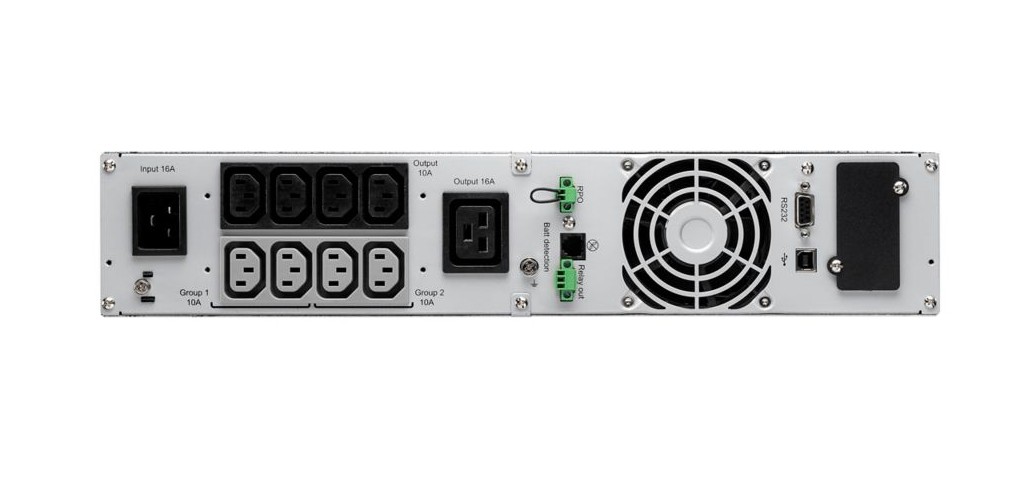

Number of Outputs: 8× IEC C13 + 1× IEC C19;

Output Power Factor: 0.9;

Output Voltage Distortion: ≤3% with linear load;

Automatic Voltage Regulation: Yes, through online double-conversion topology;

Efficiency at Maximum Load: 92%;

Efficiency in ECO Mode: 97.5%;

Internal Bypass: Yes, automatic;

Battery Type: Sealed lead-acid;

Battery Quantity: 6;

Battery Rating: 12 V / 9 Ah;

Battery Management: Eaton ABM technology, temperature-compensated charging, automatic battery test, deep-discharge protection and automatic recognition of external battery units;

Battery Replacement: Hot-swappable internal batteries and extended battery modules;

Extended Battery Capability: Yes, up to 4 external battery modules (EBM);

Communication: USB HID-compliant port, RS232 serial port, Remote Power Off terminal, output relay terminal and dry contacts;

Expansion Slot: 1× slot for optional communication card;

Ethernet Interface: No, optional network management card available;

Potential-Free Contacts: Yes;

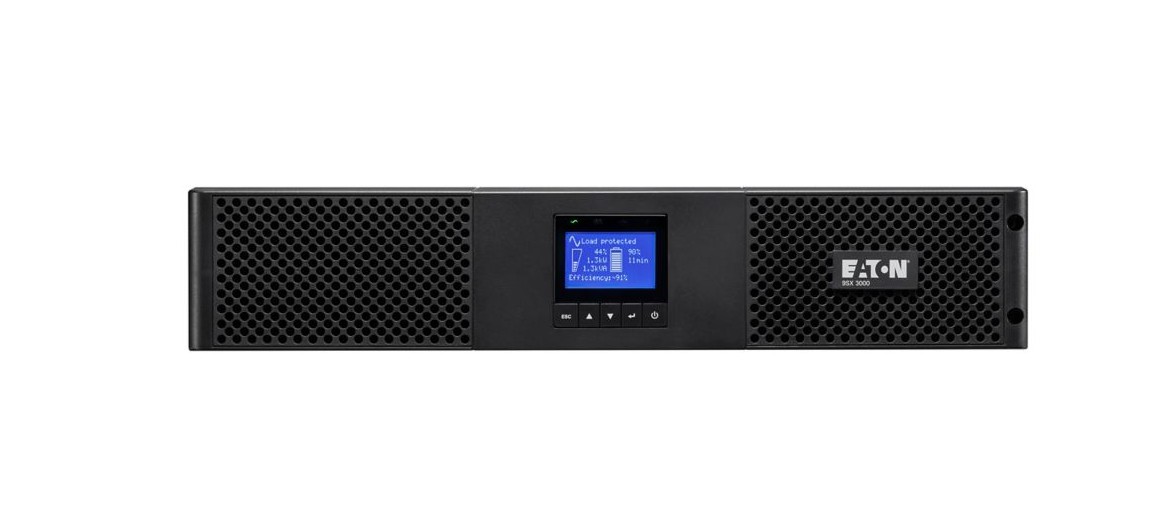

User Interface: Multilingual graphical LCD display;

Energy Metering: Yes, at UPS level;

Auto Shutdown: Yes;

Software Compatibility: Eaton Intelligent Power Manager and Eaton Intelligent Power Protector;

Runtime at Full Load: Approximately 3.5 min;

Runtime at Half Load: Approximately 10.5 min;

Noise Level: <45 dB at 1 m;

Operating Temperature: 0°C to 40°C;

Relative Humidity: 0–96%, non-condensing;

Maximum Altitude: 3,000 m;

Power Consumption: 240 W;

Color: Black;

Dimensions: 608 × 438 × 86.5 mm (D × W × H);

Weight: 26.5 kg;

Mounting: 19-inch rack-mount, 2U; rack mounting kit included;

Certifications: IEC/EN 62040-1;

Compliance: FCC Part 15 Class B;

Package Contents: UPS, input cable, 2× IEC-IEC output cables, USB cable, serial cable, 2× brackets for 19-inch mounting, rack-mounting kit, safety instructions and quickstart guide;

Special Features: Online double-conversion topology, >0.99 input power factor, 0.9 output power factor, 92% efficiency at maximum load, 97.5% ECO-mode efficiency, automatic internal bypass, energy metering, multilingual graphical LCD display, Eaton ABM battery management, hot-swappable batteries, support for up to 4 external battery modules, USB and RS232 communication, dry contacts, Remote Power Off, optional communication card slot and cable locking system;

Warranty: 2 years
