Product Type: Online UPS;

UPS Rating: 1,500 VA / 1,350 W;

Topology: Online / Double-conversion;

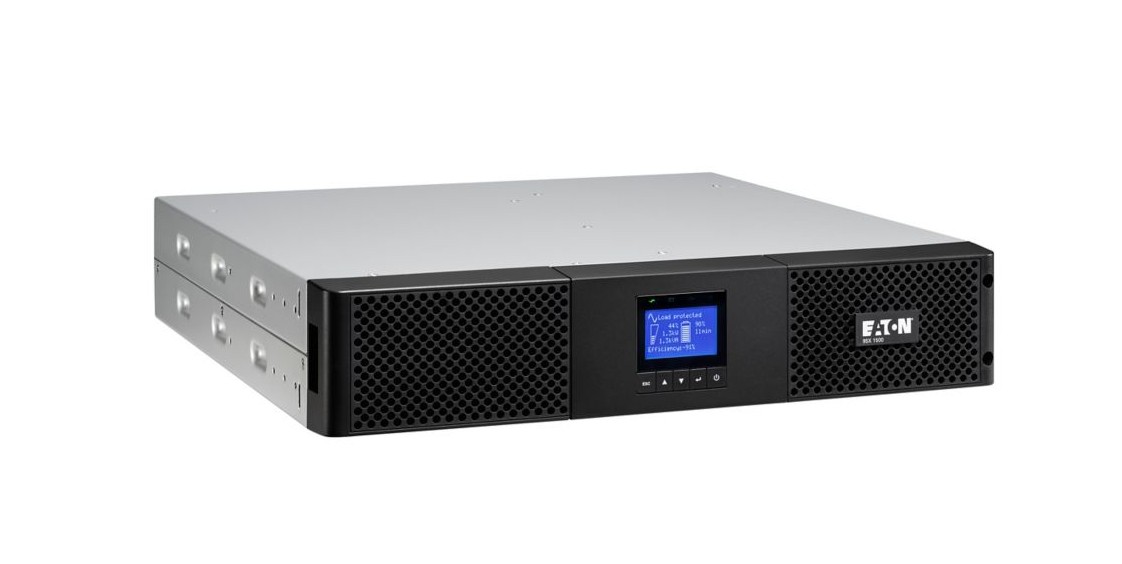

Configuration: Rack;

Rack Format: 19-inch, 2U;

Input Connection: IEC C14;

Input Nominal Voltage: 230 V AC, adjustable to 200/208/220/230/240/250 V;

Input Voltage Range: 190–276 V without derating, 120–276 V with derating;

Input Frequency Range: 40–70 Hz;

Nominal Frequency: 50/60 Hz;

Input Phase: Single-phase;

Input Power Factor: >0.99;

Output Voltage: 230 V AC, adjustable to 200/208/220/230/240 V;

Output Voltage Range: 200/208/220/230/240 V ±2%;

Output Frequency: 50/60 Hz;

Output Phase: Single-phase;

Output Waveform: Sine wave;

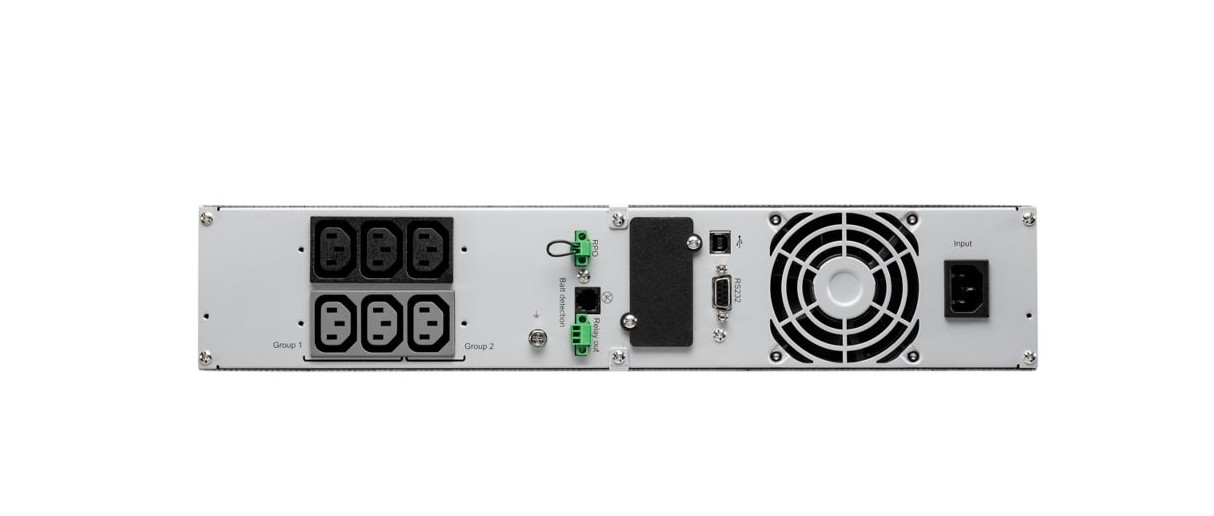

Number of Outputs: 6× IEC C13;

Output Power Factor: 0.9;

Output Voltage Distortion: ≤3% with linear load;

Automatic Voltage Regulation: Yes, through online double-conversion topology;

Efficiency at Maximum Load: 91.4%;

Internal Bypass: Yes, automatic;

Battery Type: Sealed lead-acid;

Battery Quantity: 4;

Battery Rating: 12 V / 9 Ah;

Battery Management: Eaton ABM technology, temperature-compensated charging, automatic battery test, deep-discharge protection and automatic recognition of external battery units;

Battery Replacement: Hot-swappable internal batteries and extended battery modules;

Extended Battery Capability: Yes;

Compatible EBM: Eaton 9SXEBM48R;

Communication: USB, RS232 serial port, relay contacts and Remote On/Off / Remote Power Off;

Expansion Slot: 1× slot for optional network management card;

Ethernet Interface: No, optional network management card available;

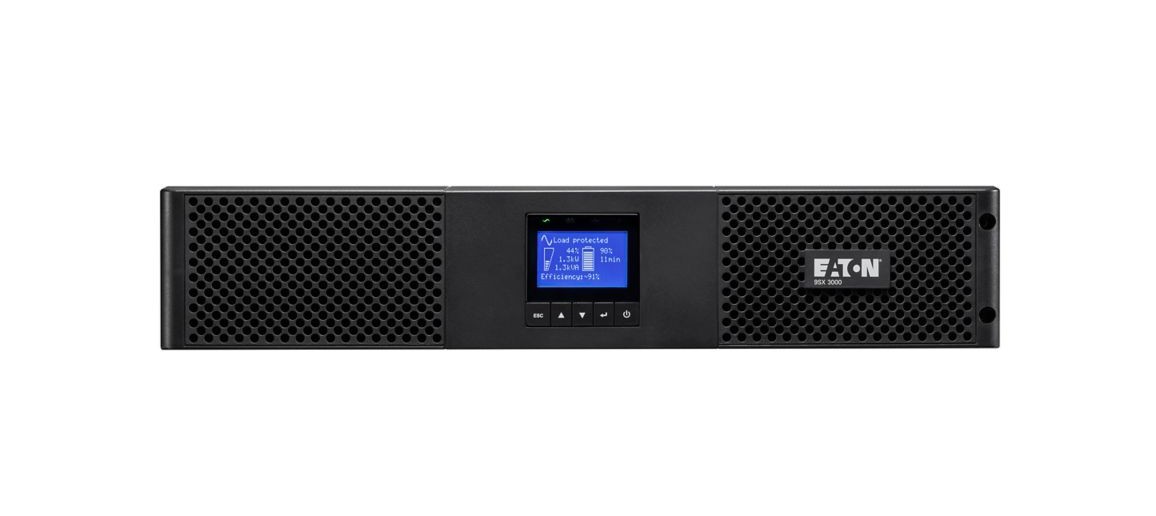

User Interface: Multilingual graphical LCD display;

Auto Shutdown: Yes;

Software Compatibility: Eaton Intelligent Power Manager and Eaton Intelligent Power Protector;

Noise Level: <41 dB at 1 m;

Operating Temperature: 0°C to 40°C;

Relative Humidity: 0–96%, non-condensing;

Maximum Altitude: 3,000 m;

Power Consumption: Not specified by Eaton;

Color: Black;

Dimensions: 438 × 438 × 86.5 mm (W × D × H);

Weight: 18.4 kg;

Mounting: 19-inch rack-mount, 2U; rack mounting kit included;

Certifications: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, cULus Listed, EAC;

Compliance: CE Marked, TUV, cULus Listed, CSA 22.2, FCC Part 15 Class B, CISPR22 Class B;

Package Contents: UPS, 2× IEC-IEC output cables, USB cable, serial cable, 2× rack-mounting brackets, rack-mounting kit, quickstart guide and safety instructions;

Special Features: Online double-conversion topology, >0.99 input power factor, 0.9 output power factor, 91.4% efficiency at maximum load, automatic internal bypass, multilingual graphical LCD display, Eaton ABM battery management, hot-swappable batteries, support for external battery modules, USB and RS232 communication, relay contacts, Remote On/Off and Remote Power Off, optional network management card and compatibility with Eaton Intelligent Power Manager and Protector;

Warranty: 2 years
