Product Type: Line-Interactive UPS;

PS Rating: 1,500 VA / 1,050 W;

Topology: Line-interactive, high-frequency;

Configuration: Rack;

Rack Format: 19-inch, 2U;

Input Connection: IEC C14, 10 A;

Input Nominal Voltage: 230 V AC;

Input Voltage Range: 184–276 V;

Input Frequency: 50/60 Hz ±1 Hz, autosensing;

Input Phase: Single-phase;

Output Voltage: 230 V AC, adjustable to 220/230/240 V;

Output Voltage Range: 230 V AC (-10% / +6%);

Output Frequency: 50/60 Hz ±1 Hz, autosensing;

Output Phase: Single-phase;

Output Waveform: Sine wave;

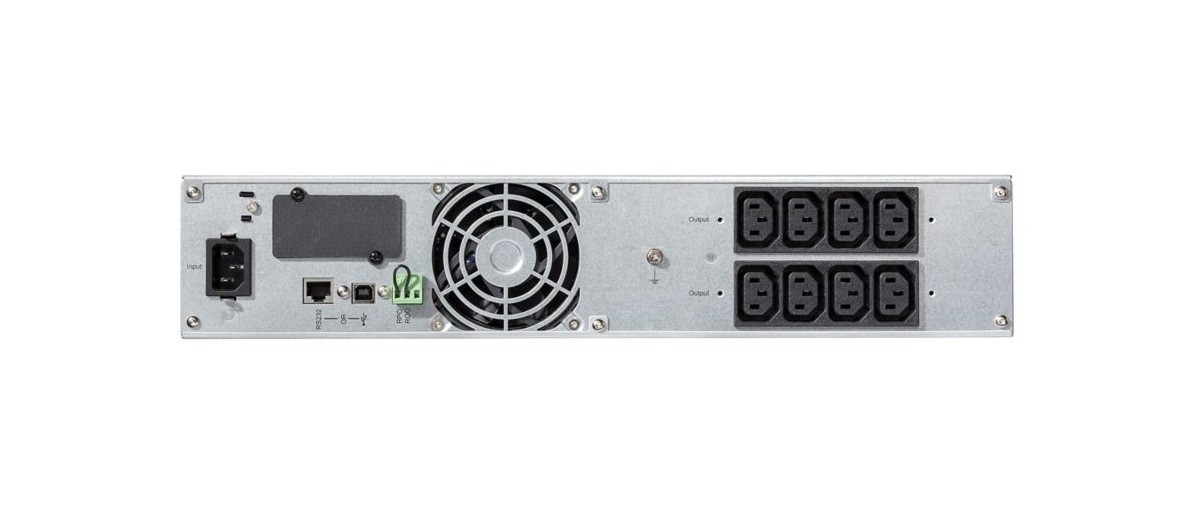

Number of Outputs: 8× IEC C13, 10 A;

Output Power Factor: 0.7;

Automatic Voltage Regulation: Yes, AVR with Booster & Fader;

Efficiency at Maximum Load: 97%;

Surge Protection: Yes;

Battery Type: Lead-acid, maintenance-free, sealed;

Battery Quantity: 3;

Battery Rating: 12 V / 9 Ah;

Battery Management: Eaton ABM or constant-voltage charging, automatic battery test and deep-discharge protection;

Battery Replacement: User-replaceable;

Extended Battery Capability: No;

Communication: 1× USB HID-compliant port, 1× RS232 serial port;

Expansion Slot: 1× Mini-Slot for optional communication card;

Ethernet Interface: No, optional network management card available;

Remote Control: Remote On/Off and Remote Power Off connectors;

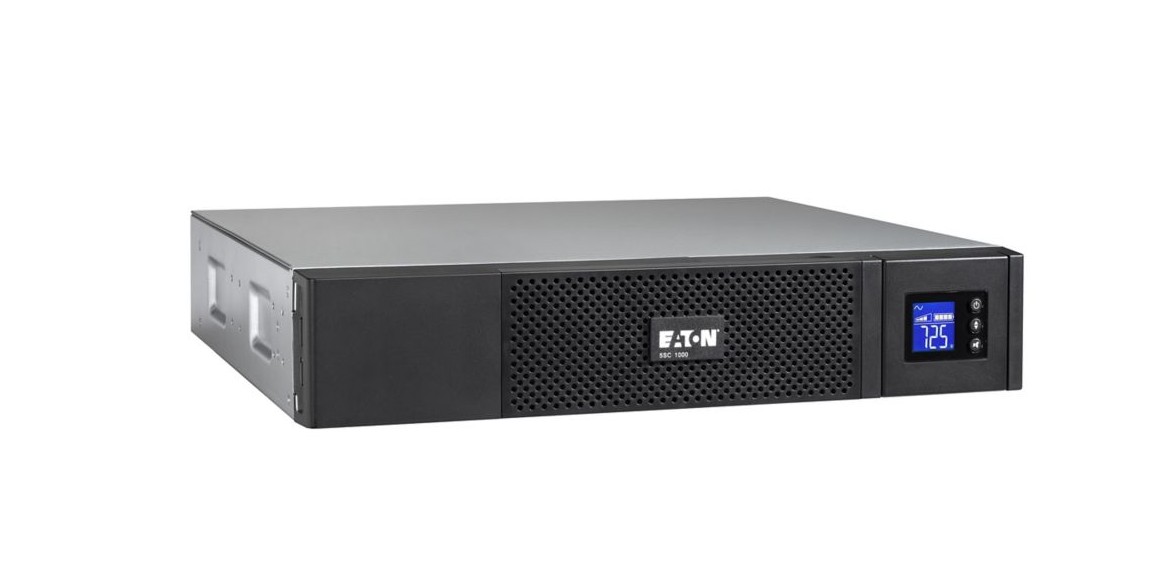

User Interface: LCD display;

Auto Shutdown: Yes;

Software Compatibility: Eaton Intelligent Power Manager and supported operating systems;

Noise Level: <40 dB at 1 m;

Operating Temperature: 0°C to 35°C;

Relative Humidity: 0–90%, non-condensing;

Maximum Altitude: 3,000 m;

Power Consumption: 63 W;

Color: Black;

Dimensions: 405 × 440 × 86.2 mm (D × W × H);

Weight: 17.78 kg;

Mounting: 19-inch rack-mount, 2U; rack mounting kit included;

Certifications: UL 1778, IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC, cTUVus;

Compliance: CE Marked, TUV;

Package Contents: Rack-mounting kit, cable locking system, USB cable, serial cable, 2× IEC-IEC cables, quickstart guide and safety instructions;

Special Features: Automatic Voltage Regulation (AVR), high-frequency line-interactive topology, sine-wave output, LCD display, Eaton ABM battery management, user-replaceable batteries, USB and RS232 communication, Remote On/Off and Remote Power Off, optional Mini-Slot communication card and 8× IEC C13 output sockets;

Warranty: 2 years
