Product Type: Line-Interactive UPS;

UPS Rating: 1,500 VA / 1,050 W;

Topology: Line-interactive, high-frequency;

Configuration: Tower / Free-standing;

Input Connection: IEC C14;

Input Nominal Voltage: 230 V AC, adjustable to 220/230/240 V;

Input Voltage Range: 184–276 V;

Input Frequency Range: 45–55 Hz (50 Hz system), 55–65 Hz (60 Hz system);

Nominal Frequency: 50/60 Hz;

Input Phase: Single-phase;

Output Voltage: 230 V AC, adjustable to 220/230/240 V;

Output Voltage Range: 230 V (+6% / -10%);

Output Frequency: 50/60 Hz ±0.1% (autosensing);

Output Phase: Single-phase;

Output Waveform: Sine wave;

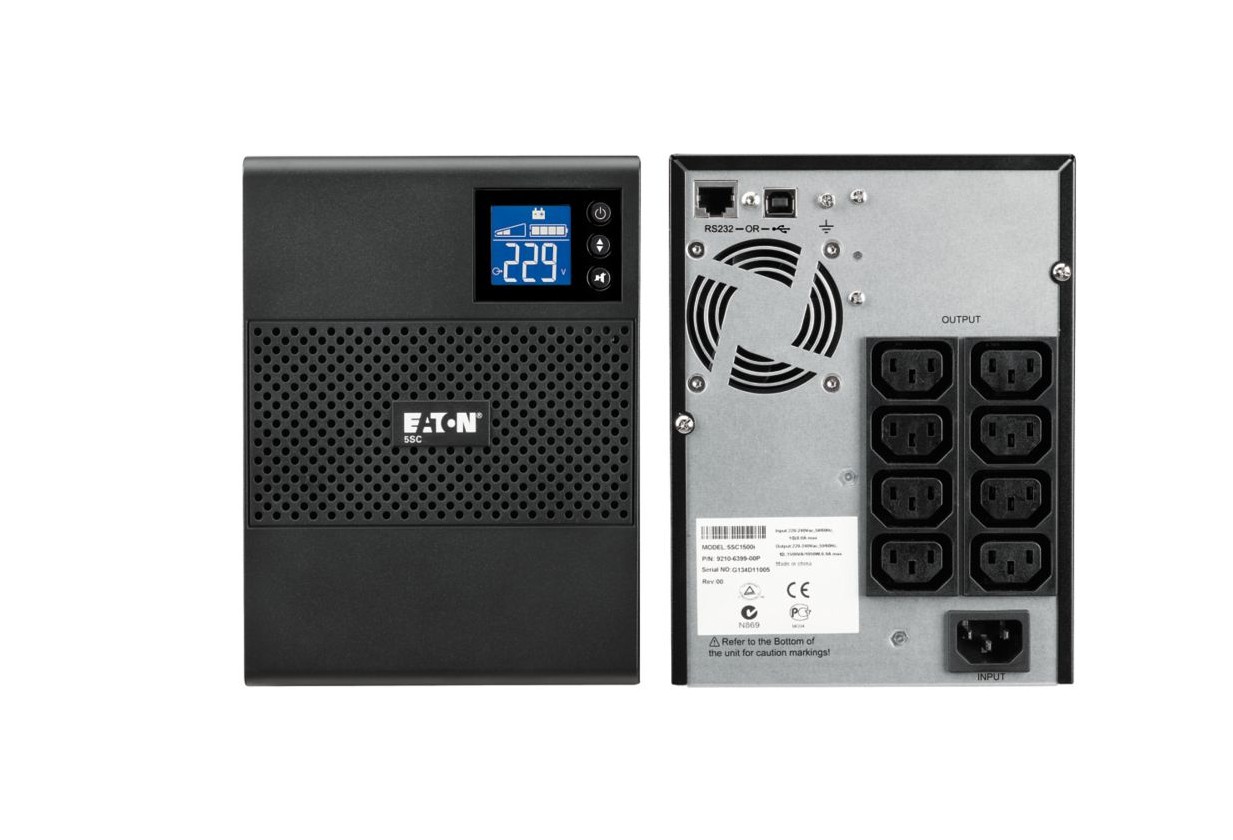

Number of Outputs: 8× IEC C13;

Output Power Factor: 0.7;

Automatic Voltage Regulation: Yes, AVR with Booster & Fader;

Efficiency at Maximum Load: 97%;

Surge Protection: Yes;

Battery Type: Lead-acid, maintenance-free, sealed;

Battery Quantity: 3;

Battery Rating: 12 V / 9 Ah;

Battery Management: Eaton ABM technology, automatic battery test and deep-discharge protection;

Battery Replacement: User-replaceable;

Extended Battery Capability: No;

Communication: 1× USB HID-compliant port and 1× RS232 serial port;

Expansion Slot: None;

Ethernet Interface: No;

User Interface: LCD display;

Auto Shutdown: Yes;

Software Compatibility: Eaton Intelligent Power Protector;

Noise Level: <40 dB at 1 m;

Operating Temperature: 0°C to 35°C;

Relative Humidity: 0–90%, non-condensing;

Maximum Altitude: 2,000 m;

Power Consumption: 63 W;

Color: Black;

Dimensions: 410 × 150 × 210 mm (D × W × H);

Weight: 15.2 kg;

Mounting: Free-standing; rack mounting kit not included;

Certifications: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, EAC, cTUVus;

Package Contents: USB cable, serial cable, 2× IEC-IEC cables, quick start guide, safety instructions;

Special Features: Automatic Voltage Regulation (AVR), clean sine-wave output, LCD display for real-time status and measurements, Eaton ABM battery management, user-replaceable batteries, USB and RS232 communication, automatic shutdown and compatibility with Eaton Intelligent Power Protector;

Warranty: 2 years
